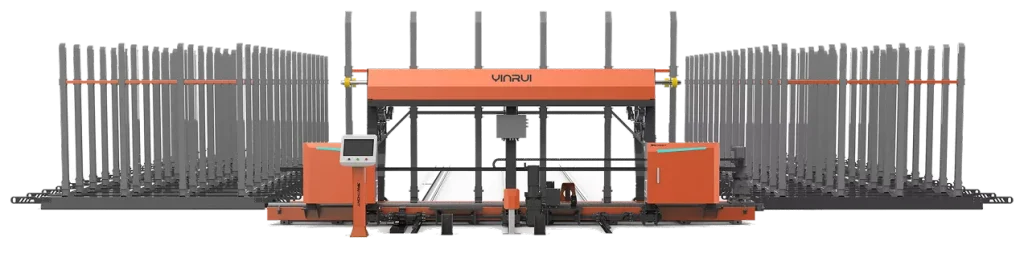

Anthony Glass Storage System
Anthony Glass Storage System
Glass storage system includes 8 parts: slide way, AGV, glass racks, storage racks, loading position, replenish position, safety fence and control system. The design of the glass storage system is suitable for supplying multiple pieces of cutting line. Through the movement of the shuttle trolley in the X and Y directions, the movement of the glass racks can be realized automatically. After the glass size, thickness, the kind of film and other related information are entered into the database, the data in the warehousing inventory area is synchronized and shared with the data in the master control center to achieve real-time update of information.

contact us

parameter
Technical parameters
01
AGV Walking Speed
40 m/min
02
Pulling Speed of X Axis
20 m/min
03
Working Cycle (Average Time of Changing Glass Rack) Glass Rack Loading Weight(T)
≤45 s/every time
04
Glass Rack Height
220/320/400/450mm
Video
Product Video
Processing glass size
  • 4200x2800mm
  • 5100x3300mm
  •   6100x3300mm
System Components
Equipment Main System Components
features
Product Features
  • Improve optimization rate: The glass storage system can be used to optimize all the glass in the glass sheets warehouse at the same time, and the optimization rate of glass cutting is increased by 3%.
  • Stable system and accurate positioning: The trolley adopts servo motors and laser ranging full-closed loop control system, efficient and stable PN communication to ensure accurate information. The waking position accuracy is up to 1 mm, and there is no need to return to the zero point after interrupting operation.
  • Modular glass rack base frame: In order to finish installation rapidly and reduce the impact of land subsidence, ensure stable operation for a long time, and facilitate equipment maintenance, the glass racks base frame in the storage area adopts a mechanical loading mechanism to prevent the safety accident caused by the movement of the glass racks.
  • Perfect integration with cutting system, laser marking system and management software, real-time upgrade.
application
Application range
Curtain Wall Glass
Automotive glass
Household appliance glass
System Doors & Windows
photovoltaic glass
Special Glass
