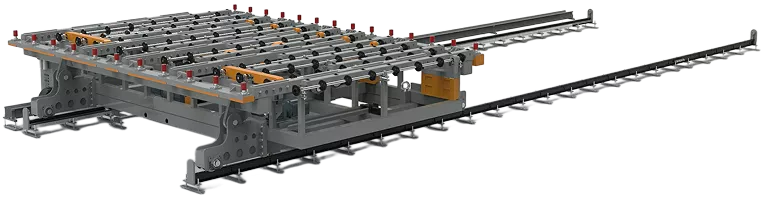

Glass Receiving Table
Glass Receiving Table
The receiving table can be used with gantry storage, RGV, and leftover glass cages. With gantry storage: The receiving table holds the raw glass taken by the gantry system, flips it from vertical to horizontal, and transfers it to the cutting table. With RGV and leftover glass cages: The arm on the leftover side lifts to connect with the cage, transferring leftover glass onto the receiving table. Through the flipping mechanism, the glass is changed from vertical to horizontal and delivered to the cutting table. It can also return cut leftover glass to the cage, improving leftover management, glass utilization, and reducing manual handling. The receiving table mainly consists of a longitudinal moving mechanism, raw glass flipping mechanism, leftover glass flipping mechanism, horizontal conveying system, and control system.

contact us

parameter
Technical parameters
01
X-Axis Moving Speed
0–30 m/min (adjustable)
02
Y-Axis Moving Speed
0–30 m/min (adjustable)
03
Loading Cycle
≤25 s (based on 4.2 m × 2.8 m glass, from receiving to delivery to the cutting machine)
Video
Product Video
Processing glass size
  • Glass thickness
3–19 mm
  • Minimum size
2000 × 1500 mm
  • Standard Glass Sizes
2500 × 2000 mm 4200 × 2,800 mm
5100 × 3,300 mm 6100 × 3,300 mm
6100 × 3,660 mm
System Components
Equipment Main System Components
features
Product Features
application
Application range
Curtain Wall Glass
Automotive glass
Household appliance glass
System Doors & Windows
photovoltaic glass
Special Glass
