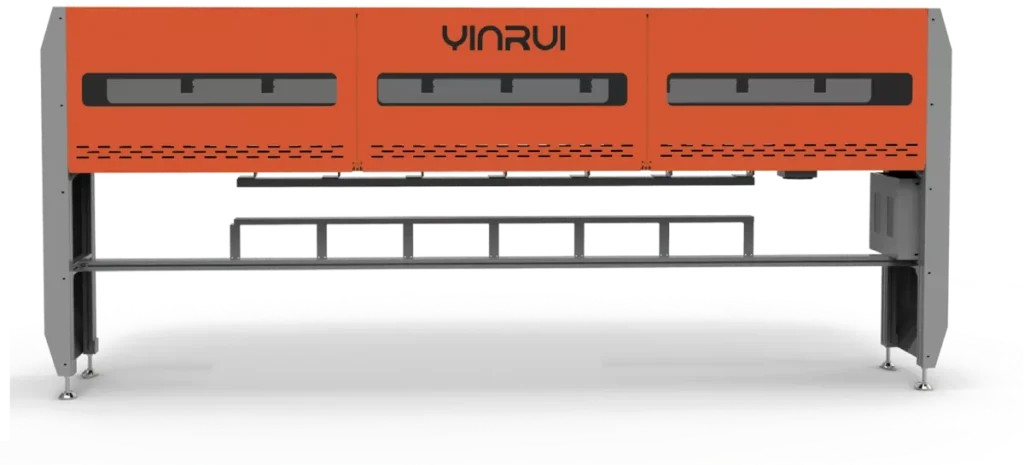

Horizontal Defect Inspection System
YINRUI Smart Glass Processing Vision Defect Detection System is a machine vision-based surface quality inspection system integrated with deep learning technology, enabling comprehensive, rapid online/offline detection of defects on continuously operating glass surfaces while accurately providing product quality data.
contact us
parameter
Technical parameters
01
Detection Accuracy
0.1mm
02
Detection Speed
≤30 m/min
Video
Product Video
Processing glass size
- 300×300mm – 6000×3300mm
System Components
Equipment Main System Components
features
Product Features
- Detection Scope: black spots, bubbles, corner defects, water droplets, delamination, impurities, scratches, ink marks, debris, stains, edge chipping, etc.
- Detection & Positioning: Stable system and accurate positioning. The trolley adopts servo motors and laser ranging full closed-loop control system, efficient and stable PN communication to ensure accurate information. The walking position accuracy is up to ±1 mm and no need to return to zero point after interrupting operation.
- Intelligent Recognition: Color recognition triggers tailored detection algorithms.
- AI Self-learning: Allows user-defined defect criteria with optional manual review.
- Real-time MES Communication: Enables sorting of qualified/unqualified products and automated quality data analysis.
- Defect Grading: with multiple handling methods based on grade levels.
