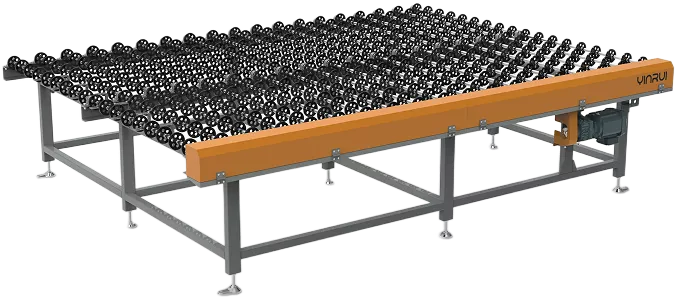

Single Direction Transfer Table
The acceleration table ensures smooth and fast glass conveying with speed matching, tracking, and buffering functions. Controlled by PLC, it automatically synchronizes with loading, unloading, and edging processes without manual adjustment. With optimized material design, it runs stably, offers long service life, and is easy to maintain.
contact us
parameter
Technical parameters
01
Glass Thickness
3—12 mm
02
Transfer Speed
0—40 m/min (adjustable)
03
Machine Height
930±30 mm (Please remark if special requirement)
04
Axis Spacing
145mm 200mm 250mm (Based on the minimum glass size)
05
Drive
Motor + reducer
06
Transmission Method
Bevel gear drive
07
Roller Material
Polyurethane/ nitrile rubber/ high temperature asbestos rope
08
Glass Conveying Method
Roller conveyor
09
Conveying Method Composition
Gear + optical axis + conveyor wheel
Video
Product Video
Processing glass size
System Components
- Equipment Main Frame
- Running System
- Transfer System
- Program Control System
Equipment Main System Components
features
Product Features
