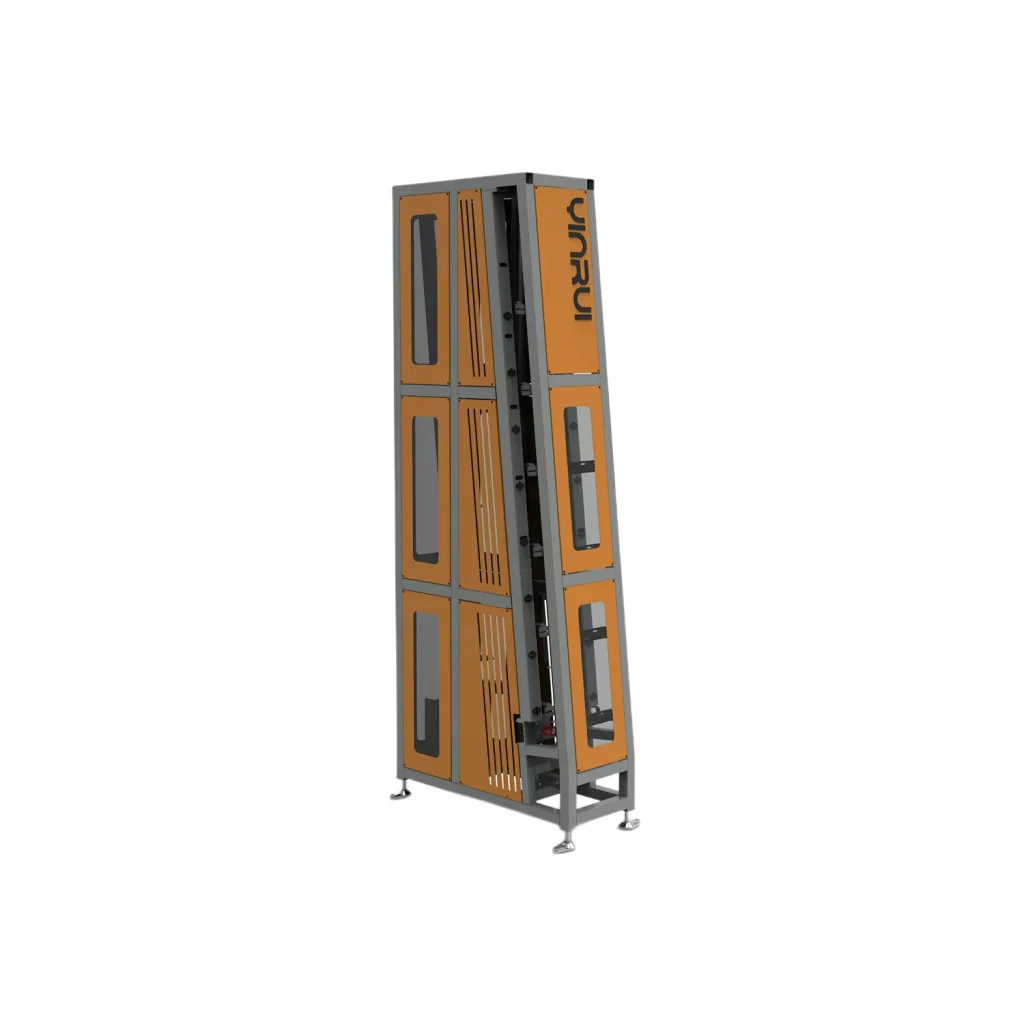

Vertical Defect Inspection System
The architectural glass online vision inspection system is used for online defect and size detection in smart architectural glass production lines. It mainly detects defects such as scratches, stones, bubbles, and inclusions, measures dimensions, and reads codes. Based on defect characteristics, the system automatically classifies and identifies products, sending a scrap signal for those that fail to meet technical requirements. For products with defects that can be reworked, the system provides a relay signal for rework, allowing manual or automated sorting. This system enhances the intelligence of the production line and provides parameter guidance for optimizing the tempering process.
contact us
parameter
Technical parameters
01
Architectural Glass Size Range
300 × 300 mm – 6000 × 3,500 mm
02
Glass Shape
Standard rectangle
03
Maximum Glass Line Speed
≤ 40 m/min (glass movement speed at inspection station rollers)
04
Minimum Glass Spacing(Front and Back)
≥ 100 mm
05
Maximum System Response Time
2 s (from glass tail passing the camera scan line to output of inspection results)
06
Glass Thickness Range
4–25 mm
07
Glass Transmittance
≥ 10% (if transmittance is below 30%, production line speed must not exceed 12 m/min or a custom special light source must be used)
08
Workshop Dust Protection Level
Standard workshop
09
Workshop Ambient Temperature
> 0℃, < 60℃
10
Ambient Humidity
≤ 95%
