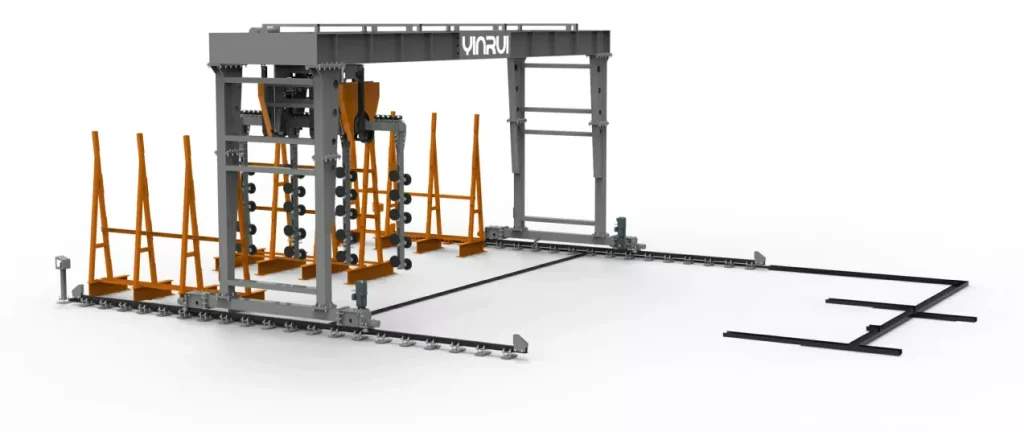

YINRUI Intelligent Crane Loading System
The Gantry Storage System integrates vacuum adsorption, intelligent path planning, and precision robotic arm collaborative technology.
It is suitable for automatic loading and unloading of glass in various processing links such as cutting, edging, cleaning, screen printing, and tempering in the glass deep processing industry.
Through the three-dimensional layout of the entire plant and the optimization of the logistics algorithm, the system can realize the automatic storage and transportation of glass from the raw sheet to the finished sheet.
Based on the PLC control system and a variety of safety detection devices, the system can automatically switch the transport path of the glass sheet and intelligently track it to meet the production rhythm of different processes.
It is integrated with a glass conveyor line, forming a full-process automation solution for glass raw sheet incoming, storage, intelligent cutting, finished sheet storage, and transportation—effectively reducing the efficiency and safety of upstream processes in glass manufacturing.
contact us
parameter
Technical parameters
01
Glass Thickness
2-19 mm
02
Glass Rack Height
300 mm
Video
Product Video
Processing glass size
|
|
|
System Components
Equipment Main System Components
features
Product Features
- Integrated with X/Y-axis movement, Z-axis lifting, C-axis rotation, and A-axis tilting, this six-degree-of-freedom system achieves precise positioning for high-precision material grasping, handling, and stacking, enhancing operational efficiency.
- Designed with a high-strength gantry beam and rigid transmission system, it ensures stable transportation of multi-ton heavy loads and adapts to diverse warehousing scenarios.
- The suction cup can rotate 360° and adjust the swing Angle for precise stacking.
- The suction cup can rotate 360° and adjust the swing Angle for precise stacking.
- The gantry structure maximizes vertical space utilization, supporting dense storage and extensive span coverage to significantly enhance glass storage capacity.
