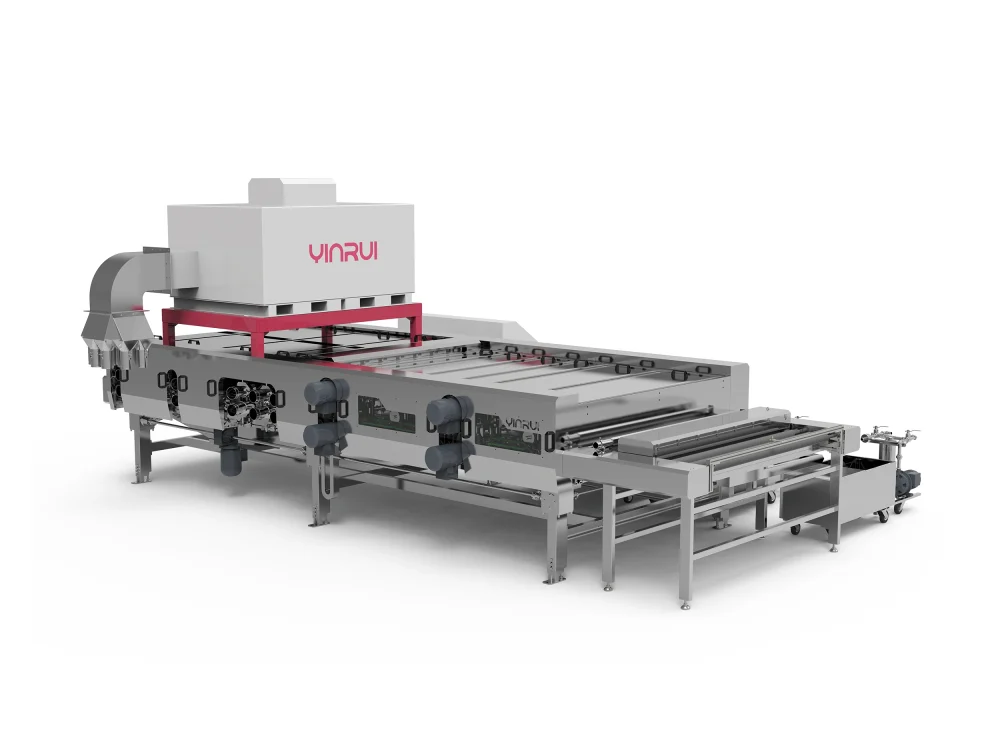

Yinrui Intelligent Photovoltaic Coated Glass Cleaning Equipment
Yinrui Intelligent Photovoltaic Coated Glass Cleaning Equipment consists of a transmission system, ultrasonic cleaning, two-fluid cleaning, pure water brushing, cold and hot air drying, and an intelligent electrical control system. It is a specialized equipment used for ultra-clean cleaning and fast drying of the glass surface before deep processing stages such as mirror production, vacuum coating, tempering, bending, and laminating.
Product Features
-
Particle Removal Master: Utilizes ultrasonic cleaning, effectively removing particles smaller than 1µm.
-
Two-Fluid Cleaning: Saves 50% of pure water usage.
-
High Precision Wind Knife: The patch-type wind knife has an error within +/-0.1mm, ensuring uniform, direct, and powerful removal of water from the glass surface.
-
Sealed Cleaning and Drying Chamber: The chamber is closed and can be opened for easy maintenance and inspection.
-
High-Speed Drying: Features an all-around wind knife layout, enabling rapid and efficient drying of the glass.
-
Intelligent Control: User-friendly operation with human-machine interaction and easy operation.
Technical Specifications
-
Max Glass Size: 1400mm
-
Min Glass Size: 300×300mm
-
Glass Thickness: 1.4-6 mm
-
Cleaning Speed: 2-18m/min
