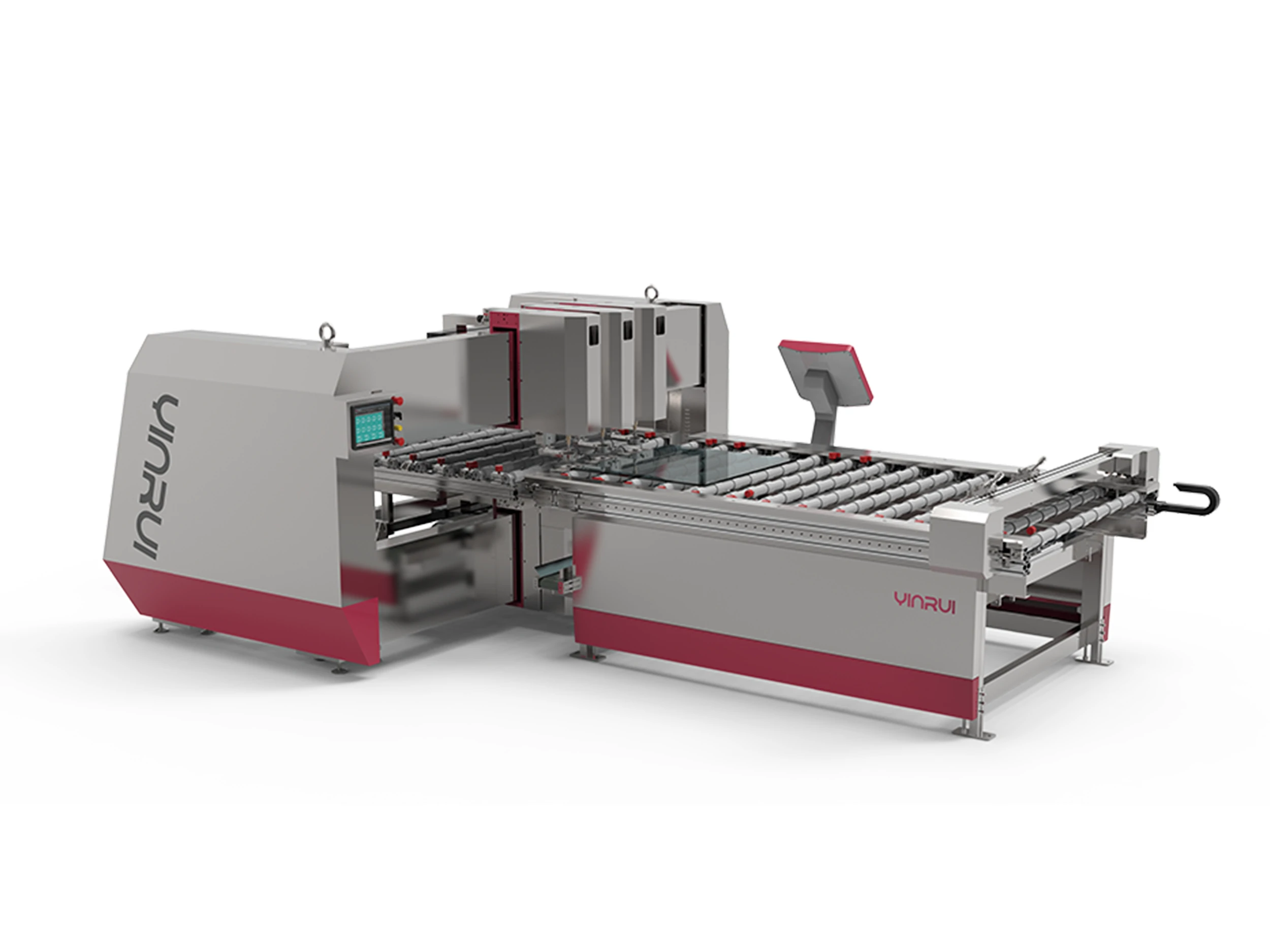

Yinrui Intelligent Photovoltaic Glass Gantry Drilling System

Yinrui Intelligent Photovoltaic Glass Gantry Drilling System
  • Equipped with intelligent servo motion control system
  • Stable and reliable performance for 24/7 continuous operation
  • Tri-spindle coaxial drilling:
    • Synchronous operation (3 holes simultaneously) for higher efficiency
    • Independent single-spindle operation (freely selectable mode)

    Product Features

    1. Intelligent Servo Motion Control System
      • Multi-servo coordinated operation
      • Stable performance with long service life
      • High control precision
    2. Gantry Frame Structure
      • Bottom-configured pass-through conveyor line
      • Enables flexible integration with glass deep-processing production lines
    3. Gantry Beam with Triple Drill Heads
      • High-efficiency drilling operation
    4. Servo Positioning System
      • Stable operation with high precision
    5. Glass Position Detection
      • Utilizes glass arrival detection signals
      • Ensures high-precision positioning in high-speed working environments
  • Technical Parameters
    Parameter Specification
    Processable Glass Size 2500×1350mm / 1200×600mm
    Glass Thickness Range 1.8-3.2mm
    Cycle Time ≤6s (single hole)
    Concentricity ±0.1mm
    Positioning Accuracy ±0.2mm
    Drill Hole Diameter 5-20mm
    Drill Head Travel Speed 250mm/s
    Drill Head Fast Lifting Speed 200mm/s
    Drill Head Slow Lifting Speed 0-3mm/min
    Drilling Speed 0-70m/min
