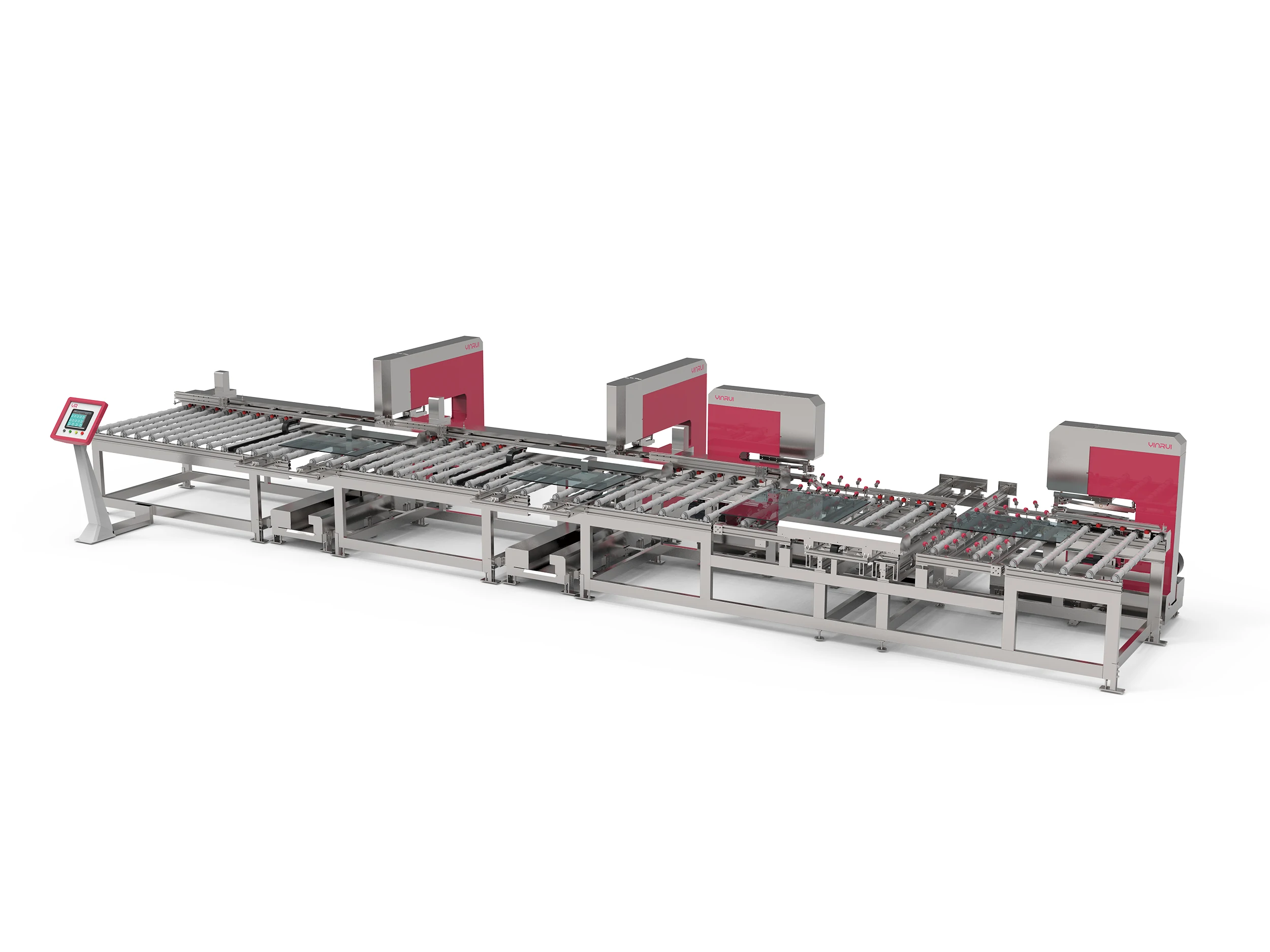

Yinrui Intelligent Sanitary Glass Drilling System
The system adopts an intelligent servo motion controller control system, featuring stable and reliable performance capable of 24-hour continuous operation.
The conveyor line and machine body cooperate for bidirectional movement, with servo-driven operation enabling fast and accurate glass positioning and drilling.
The system can be equipped with various diameter drill bits for divided and alternating work.
Technical Parameters
| Parameter | Specification |
|---|---|
| Processable Glass Size | 2500×1200mm / 1200×300mm |
| Glass Thickness Range | 4-19mm |
| Cycle Time | ≤6s (single hole) |
| Concentricity | ±0.1mm |
| Positioning Accuracy | ±0.3mm |
| Drill Hole Diameter Range | 4-30mm |
| Drill Bit Configuration | 4+4+2 |
| Drill Head Travel Speed | 250mm/s |
| Drill Head Fast Lifting Speed | 200mm/s |
| Drill Head Slow Lifting Speed | 0-3mm/min |
| Drilling Speed | 0-40m/min |
