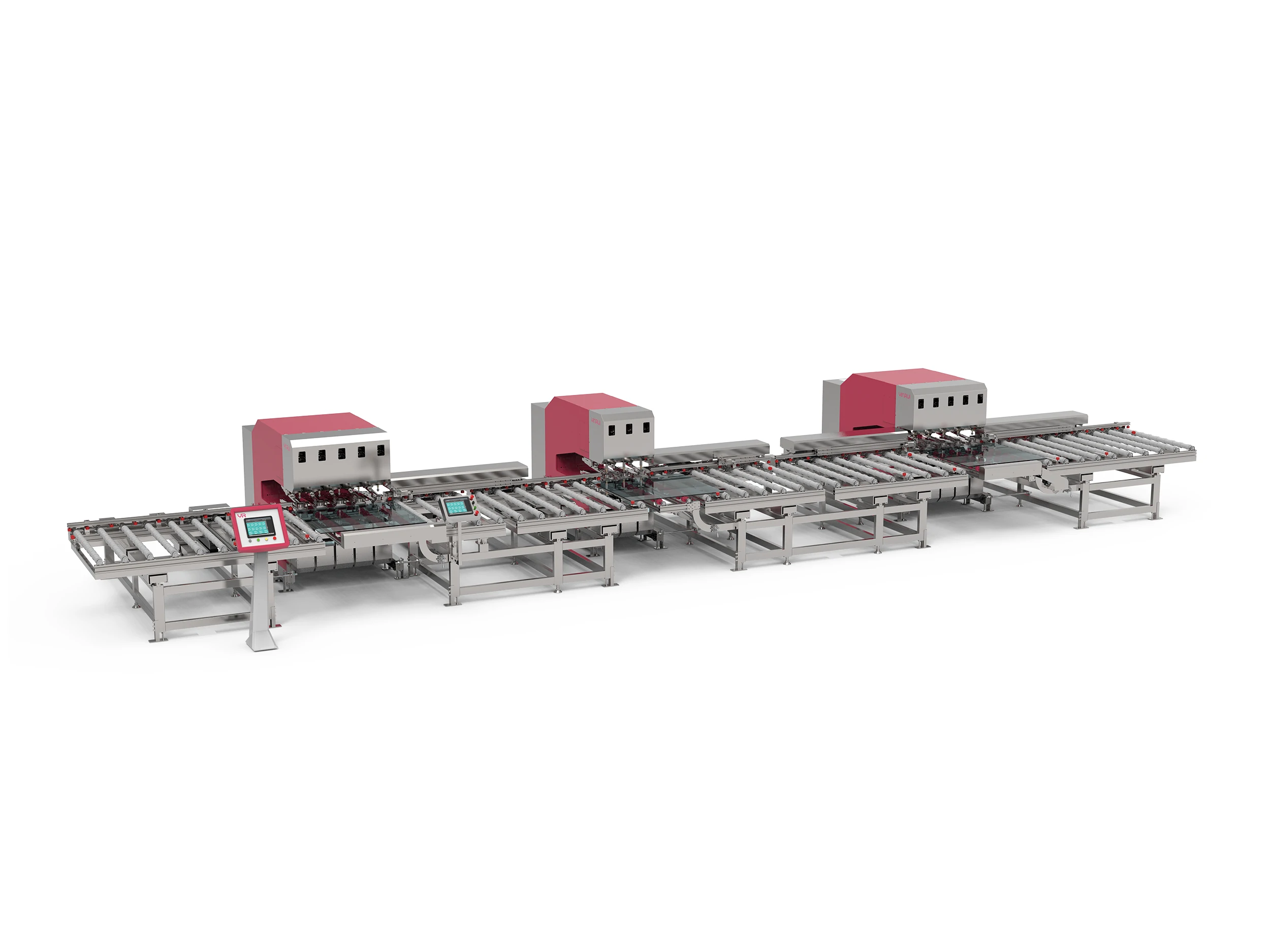

Yinrui Intelligent Sanitary Glass Multi-Drill Head Drilling System

Technical Description:
The system utilizes an intelligent servo motion controller control system, delivering stable and reliable performance capable of 24-hour continuous operation. The conveyor line and machine body synchronize for bidirectional movement, with servo-driven mechanisms enabling rapid and precise glass positioning and drilling. It accommodates multiple drill bit diameters for simultaneous installation and supports divided, alternating operations.

Product Features:

  1. Intelligent Servo Motion Control System
    • Multi-servo coordinated operation
    • Stable performance with extended service life
    • High control precision
  2. Full Servo-Driven Operation
    • Stable running with high accuracy
  3. Multi-Head Coordinated Work
    • High production efficiency through task division
  4. Multi-Diameter Drill Capability
    • Simultaneous installation of various drill bit sizes
    • Processes multiple hole diameter requirements on a single glass panel
  5. Glass Position Detection
    • Incorporates glass arrival monitoring signals
    • Ensures high-precision positioning in high-speed environments



Technical Parameters

Parameter Specification
Processable Glass Size 2500×1200mm / 1200×300mm
Glass Thickness Range 4-19mm
Cycle Time ≤6s (single hole, 10mm glass, Φ12mm hole)
Concentricity ±0.1mm
Positioning Accuracy ±0.3mm
Drill Hole Diameter Range 5-30mm
Drill Bit Configuration 5+3+5 (multi-diameter setup)
Drill Head Travel Speed 250mm/s
Drill Head Fast Lifting Speed 200mm/s
Drill Head Slow Lifting Speed 0-3mm/min
Drilling Speed 0-40m/min
